A 110 kg eVTOL nrog 30 km ntau, 90 kg payload, thiab 3D- luam tawm titanium qauv. Qhov qis -qhov siab kev lag luam tsis yog qhov theoretical - thiab titanium yog cov khoom ua rau nws ya.
Lub Hnub Qub Qhia

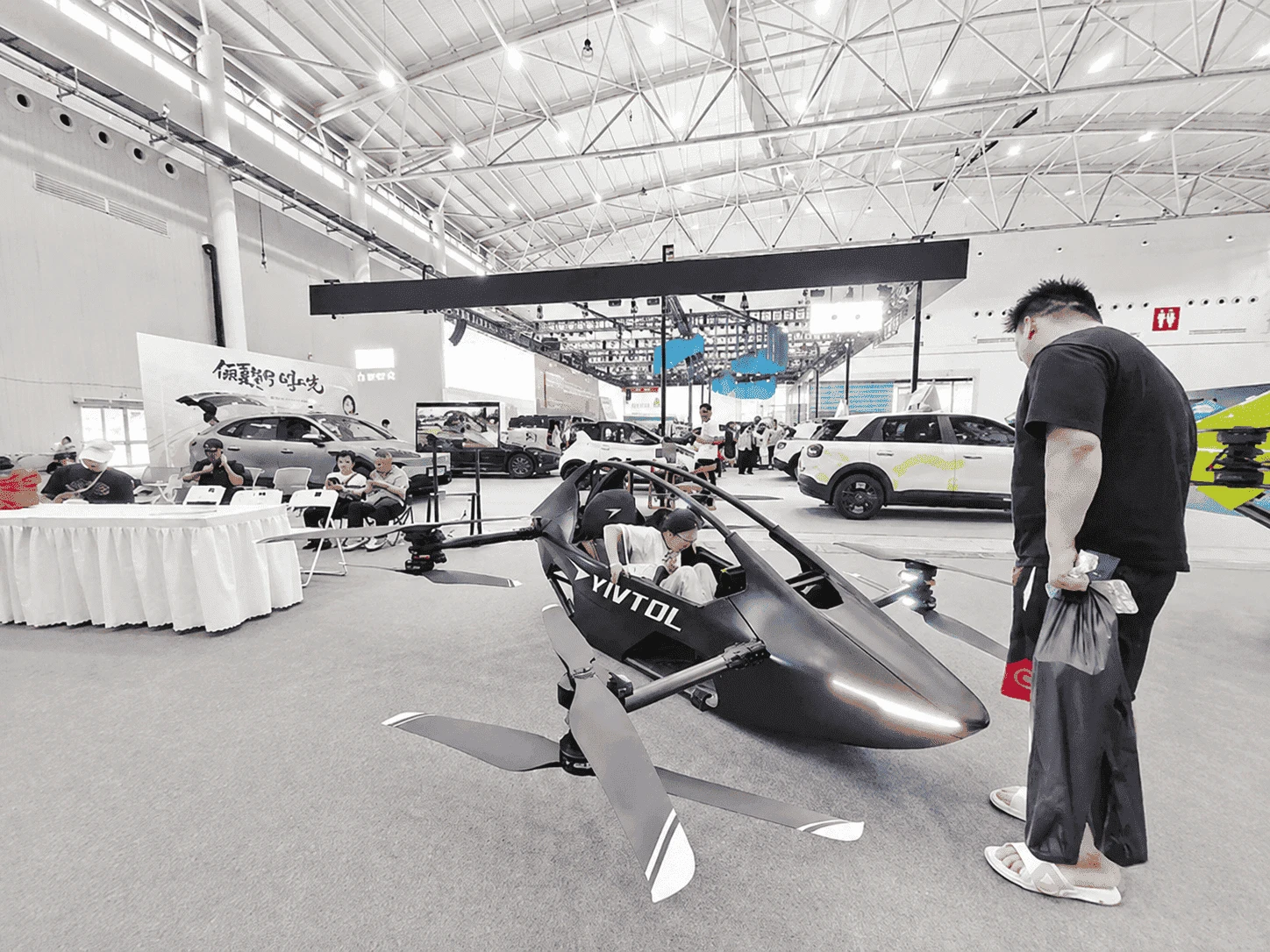

Ntawm qhov tsis ntev los no - qhov chaw siab tshaj kev lag luam exhibition hauv Suav teb, ib qho khoom lag luam nres txhua tus hauv lawv txoj kev: lubVIVTOL- ultralight eVTOL (hluav taws xob ntsug takeoff thiab tsaws aircraft) ua los ntawm Shenzhen Yingwu Intelligent Technology.
| Specification | Tus nqi |
|---|---|
| Tag nrho qhov hnyav | 110 kg ib |
| Them nyiaj | 90kg ua |
| Ntau yam | 30km ua |
| Nqe | ~$53,000 |
| Daim ntawv pov thawj | Tuam Tshoj thawj ultralight eVTOL daim ntawv tso cai dav hlau tshwj xeeb |
Cov neeg tuaj saib tau nyob rau hauv lub cockpit, kov cov zaub, thiab yees duab zoo li ib tug science ntawv tseeb prop - tsuas yog nws yoov, nws tau ntawv pov thawj, thiab nws tau ua tiav ntau yam pej xeem crewed xeem flights.
Cov ntaub ntawv hauv qab no kev ua tiav:titanium alloy.
Vim li cas titanium thiaj li ua tau
Qhov hnyav - qhov sib npaug
Nyob rau hauv hluav taws xob aviation, txhua kilogram txuag ntawm lub airframe yog ib kilogram muaj rau roj teeb muaj peev xwm - uas txhais ncaj qha rau hauv ntau yam. Ib qho hnyav tag nrho 110 kg rau lub dav hlau crewed yog txawv tshaj plaw, thiab titanium yog thawj qhov laj thawj.
Titanium qhov ceev (~ 4.5 g / cm³) yog kwv yees li56% ntawm cov hlaunrog lub zog sib piv. Hloov cov khoom siv hlau nrog titanium ua tiav tib yam kev thauj khoom -cov kabmob muaj peev xwm ntawm qhov hnyav dua - ua rau lub teeb airframe, roj teeb loj dua, thiab ntev dua.
Kev qaug zog tsis kam: muaj sia nyob ntau txhiab ntawm kev tawm mus
Ib qho eVTOL tiv taus rov qab rov pib dua- voj voog tsaws, kev co los ntawm rotors, thiab aerodynamic cuam tshuam ntawm qhov siab. Titanium qhov qaug zog kuj yogntau tshaj 2 × ntawm cov pa hlau, txhais tau hais tias lub airframe tswj kev ncaj ncees los ntawm siab - siv zaus yam tsis muaj kev pheej hmoo ntawm kev qaug zog tawg.
3D- luam tawm, kev sib xyaw ua ke
VIVTOL's titanium Cheebtsam tsis machined los ntawm cov khoom ruaj khov - lawv yog3D- luam tawm siv aerospace- qib additive manufacturing. Cov txiaj ntsig:
- 70% tsawg dua cov khoom sib dhos- Cov pob qij txha tsawg dua txhais tau tias tsawg dua cov ntsiab lus ua tsis tiav
- 1.5 × qaug zog lub neej txhim khodhau conventionally machined titanium qhov chaw
- Integrated complex geometries tsis yooj yim sua kom ua tiav los ntawm kev tsim khoom
Txoj hauv kev ntxiv no yog qhov tso cai rau VIVTOL kom ua tiav daim ntawv pov thawj - cov qauv kev sib xyaw ua kom pom kev nyab xeeb txaus los ntawm kev sim nruj.
Lub Folding Innovation: Titanium Hinges Pab kom txav tau yooj yim
VIVTOL ntafolding tis- ib qho tseem ceeb tsim qauv uas hloov nws los ntawm lub dav hlau mus rau hauv ib yam dab tsi uas haum rau hauv lub chaw nres tsheb txheem lossis nyob tom qab ntawm lub tsheb thauj khoom.
| Hom | Qhov ntev |
|---|---|
| Davhlau configuration | Tag nrho wingspan - npaj ya |
| Folded configuration | Me me dua li SUV loj- haum rau hauv qhov chaw nres tsheb, thauj khoom mus rau lub txaj tsheb |
Tab sis folding tis tsim ib qho kev sib tw engineering tshwj xeeb: lub pob khawm, xauv cov txheej txheem, thiab cov ntsiab lus pivot yuav tsum tiv taus.phav phav folding cycles, vibration, thiab kev sib txhuamtsis tsim kev qaug zog tawg lossis hnav.
Titanium tsis kam raufretting hnav thiab nkeesua rau cov khoom txav tseem ceeb no siv tau rau ntev -, rov siv dua. Yog tias tsis muaj titanium, lub tshuab folding yuav xav tau cov ntaub ntawv hnyav dua, kev saib xyuas ntau zaus, lossis ob qho tib si - cuam tshuam rau tag nrho lub tswv yim txav tau yooj yim.
Tiag -Kev lees paub ntiaj teb: Quieter dua li qhov xav tau
VIVTOL tau ua tiav kev sim davhlau ntawm ntau qhov qis - qhov chaw ua qauv qhia kev ncig xyuas qhov siab thoob plaws Suav teb, ua haujlwm ntawm txoj kev zoo nkauj ntawm 100-300 meters qhov siab.
Cov txiaj ntsig tseem ceeb: cov suab nrov yog20 decibels qisdua li sib piv multirotor eVTOL dav hlau ntawm cov chav kawm zoo sib xws - ib qho txiaj ntsig tseem ceeb rau kev ua haujlwm ntawm thaj chaw ncig xyuas thiab thaj chaw nyob.
Ntau qhov chaw scenic tau tshaj tawm ua ntej - yuav cov ntawv xav tau, qhia txog kev xav tau kev lag luam tiag tiag tshaj li hauv pem teb exhibition.
Daim Duab Loj: Tsawg-Altitude Economy Xav Tau Titanium
VIVTOL yog ib qho khoom lag luam, tab sis nws sawv cev rau qhov sib txawv loj dua. Tuam Tshoj qhov qis -qhov siab kev lag luam - hauv nroog huab cua txav mus los, kev thauj mus los drones, kev ya mus ncig ua si, kev teb xwm txheej ceev - tau npaj kom ncav cuag$ 490 billion los ntawm 2035.
Txhua lub dav hlau no xav tau lub teeb yuag, muaj zog, qaug zog- cov ntaub ntawv tsim qauv. Titanium yog cov lus teb - thiab raws li kev tsim cov txheej txheem paub tab thiab cov nqi poob qis, kev saws me nyuam yuav nrawm:
| Tus tsav tsheb | Cov nyhuv ntawm Titanium Demand |
|---|---|
| eVTOL ntau lawm | Cov txheej txheem airframe Cheebtsam - txhua lub dav hlau xav tau titanium |
| 3D luam ntawv maturation | Titanium hmoov xav tau loj hlob raws li kev tsim khoom ntxiv hloov cov tsoos fabrication |
| Kev txo nqi los ntawm kev rov ua dua tshiab | Recycled titanium feedstock txo qis ib -unit material cost |
| Nthuav daim ntawv thov | Logistics drones, cawm thaum muaj xwm txheej ceev, lub tsheb huab cua ntawm tus kheej - pawg xav tau tshiab |
VIVTOL ua pov thawj tias titanium-kev ua haujlwm ntawm tus kheej huab cua tsis yog lub tswv yim - nws yog cov ntawv pov thawj, ya, cov khoom lag luam siv tau.
Txhua titanium tivthaiv nyob rau hauv VIVTOL - tus qauv thav duab, lub folding hinges, lub 3D- luam ntawv nodes - pib ua tib zoo ua titanium raw khoom.
Rau 3D- cov khoom luam tawm, cov saw hlau khiav: titanium ingot → bar / billet → gas atomization → spherical hmoov → additive manufacturing. Qhov zoo ntawm qhov pib bar txiav txim siab txog chemistry, particle zoo, thiab sib xws ntawm cov hmoov.
Rau machined thiab tsim Cheebtsam, cov saw khiav: titanium ingot → phaj, bar, los yog raj → sib sau thiab machining → tiav ib feem. Pib cov khoom zoo propagates los ntawm txhua kauj ruam.
Baoji Yibaite Tshiab Materials Technology Co., Ltd.yog lub tuam txhab ua haujlwm siab -tech titanium hauvBaoji, Shaanxi Province - Tuam Tshoj lub Titanium Valley. Peb muab cov ntaub ntawv titanium uas pub rau hauv qis - qhov chaw siab tshaj kev lag luam khoom noj khoom haus - los ntawm eVTOL airframes mus rau cov khoom siv drone rau cov khoom siv hauv av:
| Khoom | eVTOL / Low-Kev thov siab |
|---|---|
| Titanium bar thiab pas nrig | Cov txheej txheem thav duab, machined nodes, pob khawm blanks, hmoov ntau lawm feedstock |
| Titanium phaj thiab nplooj ntawv | Cov qauv vaj huam sib luag, tsim cov brackets, cov khoom ntim khoom |
| Titanium hlau | Vuam consumables, caij nplooj ntoos hlav Cheebtsam, fastener Tshuag |
| Titanium strips | Precision- tsim cov pob khawm, cov hlua txuas ntxiv, cov qauv txheej txheem |
| Forgings | Siab -kev ncaj ncees cov qauv ntawm cov rotor hub Cheebtsam |
Tag nrho cov khoom xa tuaj nrogdaim ntawv pov thawj puv zeb xeem- chemistry, mechanical properties, dimensions - traceable from ingot to delivered products.
Lub Takeaway
Ib lub 110 kg titanium ya maus taus uas raug nqi $ 53,000, nqa ib tus neeg 30 km, folds kom haum rau hauv chav nres tsheb, thiab tau ntawv pov thawj rau cov neeg caij dav hlau. Qhov no tsis yog lub tswv yim yees duab - nws yog cov khoom tiag tiag ya txoj kev.
Cov khoom uas ua rau nws ua tau - titanium alloy, 3D- luam tawm, lub teeb yuag, qaug zog- tiv taus, corrosion- pov thawj - yog tib yam khoom siv hauv cov dav hlau dav hlau, sib sib zog nqus - hiav txwv submersibles, thiab kev cog hniav phais. Daim ntawv thov yog tshiab. Cov ntaub ntawv tshawb fawb tau ua pov thawj.
Raws li qhov qis - qhov siab ntawm kev lag luam nce los ntawm ntau txhiab mus rau ntau lab lub dav hlau, titanium xav tau yuav loj hlob nrog nws - los ntawm cov qauv airframes mus rau folding mechanisms rau lub cev muaj zog.
Lub ntuj tsis yog qhov txwv lawm. Nws yog lub khw.
